LEGEND MBS Regulator Set

Description

When performance is your highest priority, LEGEND MBS Regulator Set is the answer

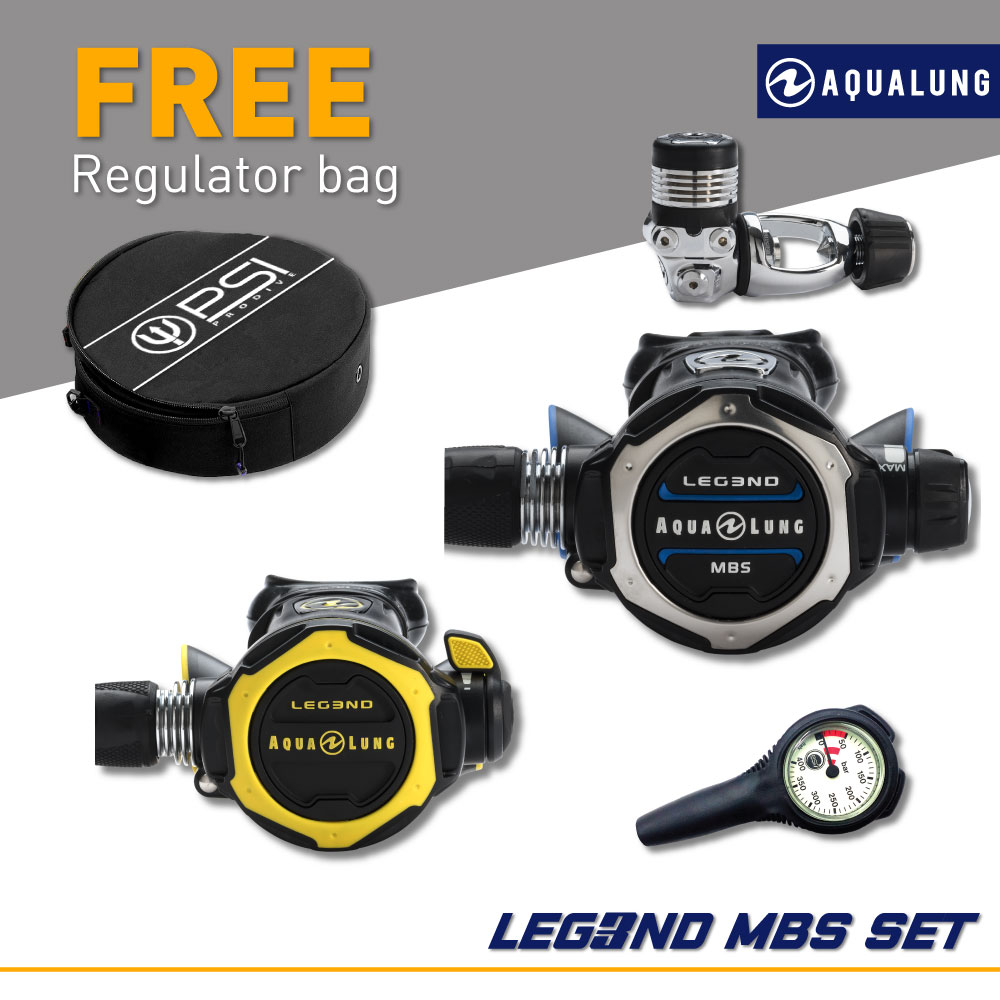

Aqualung LEGEND MBS Regulator Set

• First Stage
  • When the first stage is not connected to a cylinder valve, the Auto Closure Device (ACD) keeps the inlet shut to protect the first stage internal parts from contamination and corrosive water.
    • LEGEND MBS Regulator Preserves the internal lubrication
    • Keeps the inlet filter clean and dry
    • Safer for elevated percentages of oxygen
  • Exceptional cold-water performance is achieved by modernizing Aqualung’s three anti-freeze properties:
    1. Where there’s no moisture, there’s no ice: The LEGEND’s integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment
    2. Deep ribs create a large heat exchange surface area that helps to prevent ice from forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)
    3. The new over-molded cap delays ice forming over the external diaphragm
  • Auto-Balanced (also known as Over-Balanced)
  • Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver’s depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density
  • Ergonomically shaped DIN and YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands
  • Channeled YOKE screw to prevent water retention.
  • Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damage
  • Perfectly positioned HP and MP ports to provide optimal hose routing

• Second Stage
  • New front cover opening channels allow water to flow sideways over the diaphragm
    • Radial openings to prevent free-flow when diving in stronger currents
    • Openings widened to reduce peak inspiratory flow by an impressive 20%
  • New over-molded exhaust cover made of elastomer with a “soft touch” effect
  • Over-molded air purge
    • The wide surface area makes regulator purging easier
    • Purge depth controller optimizes airflow with minimal effort
  • A patented Comfo-bite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.
  • A detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.
  • The enlarged heat exchanger helps to prevent freezing of the second stage mechanism
  • Air channel deflector
    • Directs the airflow evenly during the inhalation phase
    • A streamlined bi-material deflector lowers the exhalation effort
  • Flexible and lightweight Aqua Flex hose with dual protectors

• Octopus

• To complement the Legend regulator family, Aqualung created the Legend octopus.
  This high-visibility, yellow version of the Legend second stage is ideal to complete your system.

• • High-visibility yellow purge cover and accent pieces
  • 39” high-visibility yellow, Aqua Flex hose
  • Pneumatically-balanced to be ideally suited for a Legend over-balanced first stage
  • The venturi lever prevents unwanted free-flow when not in use
  • Excellent cold water performance due to highly efficient heat exchanger surrounding the valve

• Console

  • Compact and lightweight design
  • Pressure gauge (Zero to 400 Bar)
