Twin Isolation Valve Modular

Description

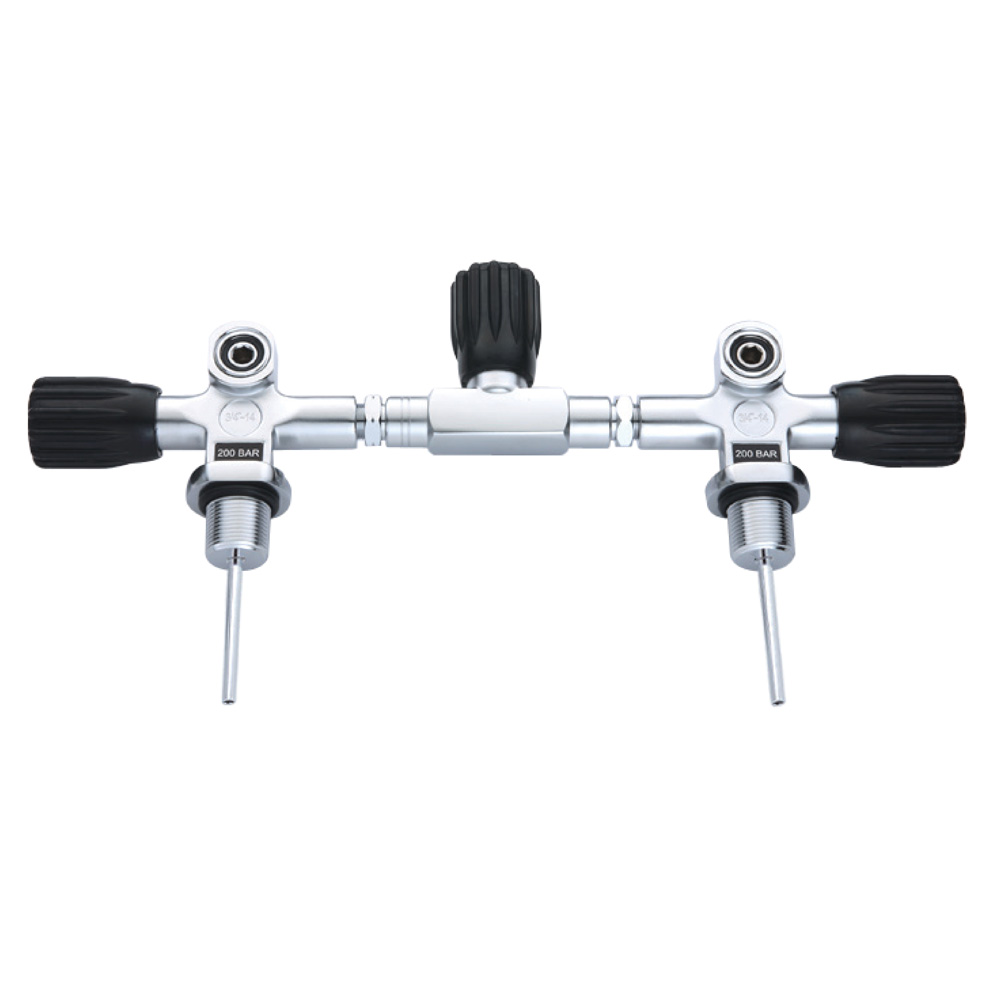

Twin Isolation Valve Modular complete set

Twin Isolation Valve complete set with DIN Removeable Insert and 3/4”-14 NPSM standard inlet threads. Compatible with Thermo valve Parts.

• PRO – DIN/Yoke with removable spin-out insert
• Center-to-center distance: 215 mm (8.46”) +/- 5 mm (0.2”)
• 3/4”-14 NPSM standard inlet threads
• High gas flow for optimum regulator performance
• On/Off seat built from high strength brass with nylon seat and Teflon plated for years of smooth operation
• One-piece safety assembly protected within the body of the valve
• Traditional copper crush washer sealed bonnet
• Modular access plugs (R/L) included for use as single valves
• Screw-in dip tube with hex tighten feature
