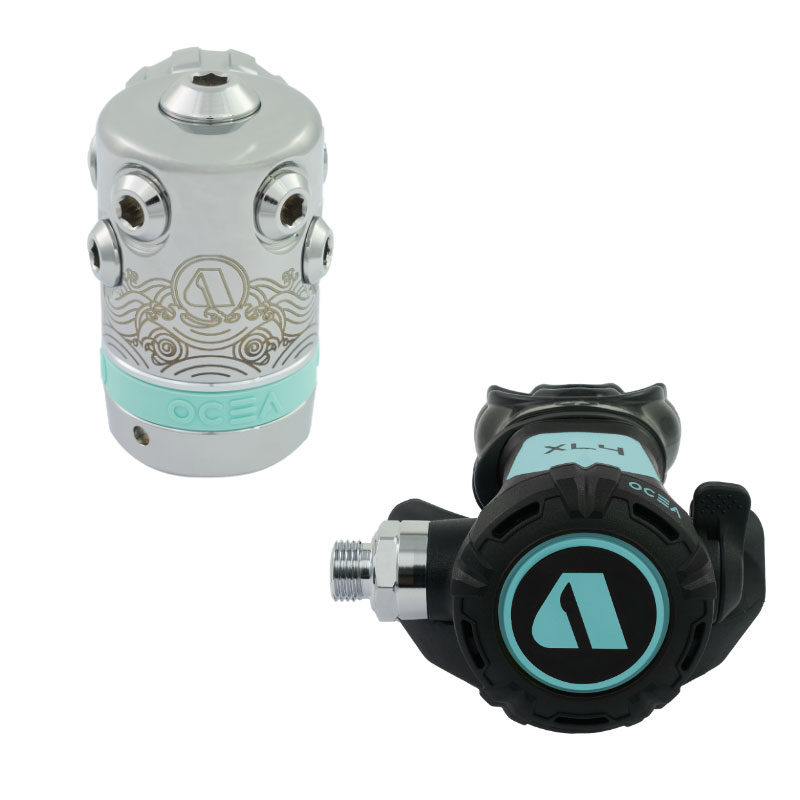

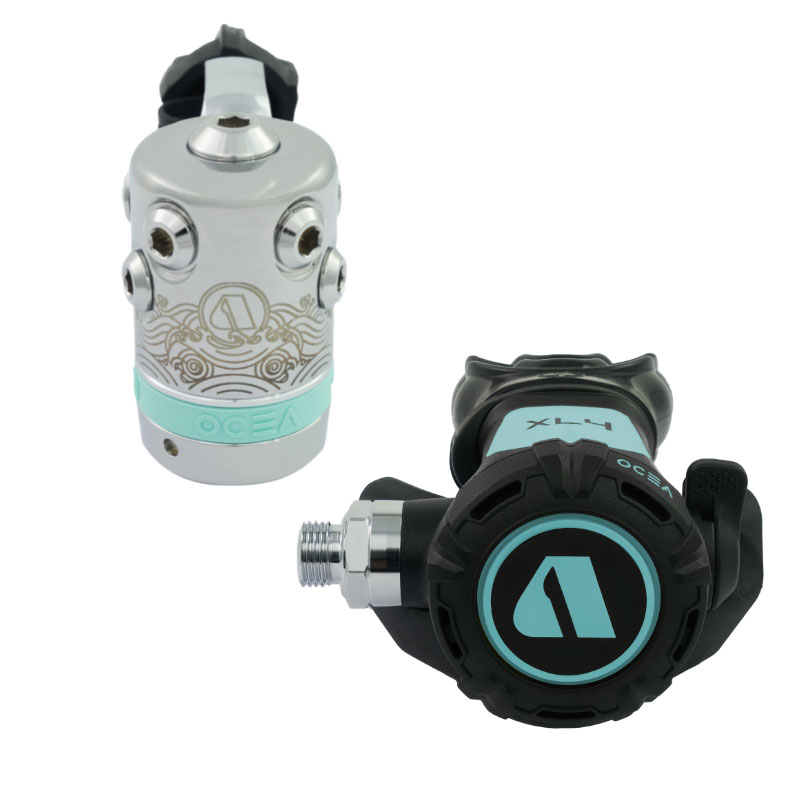

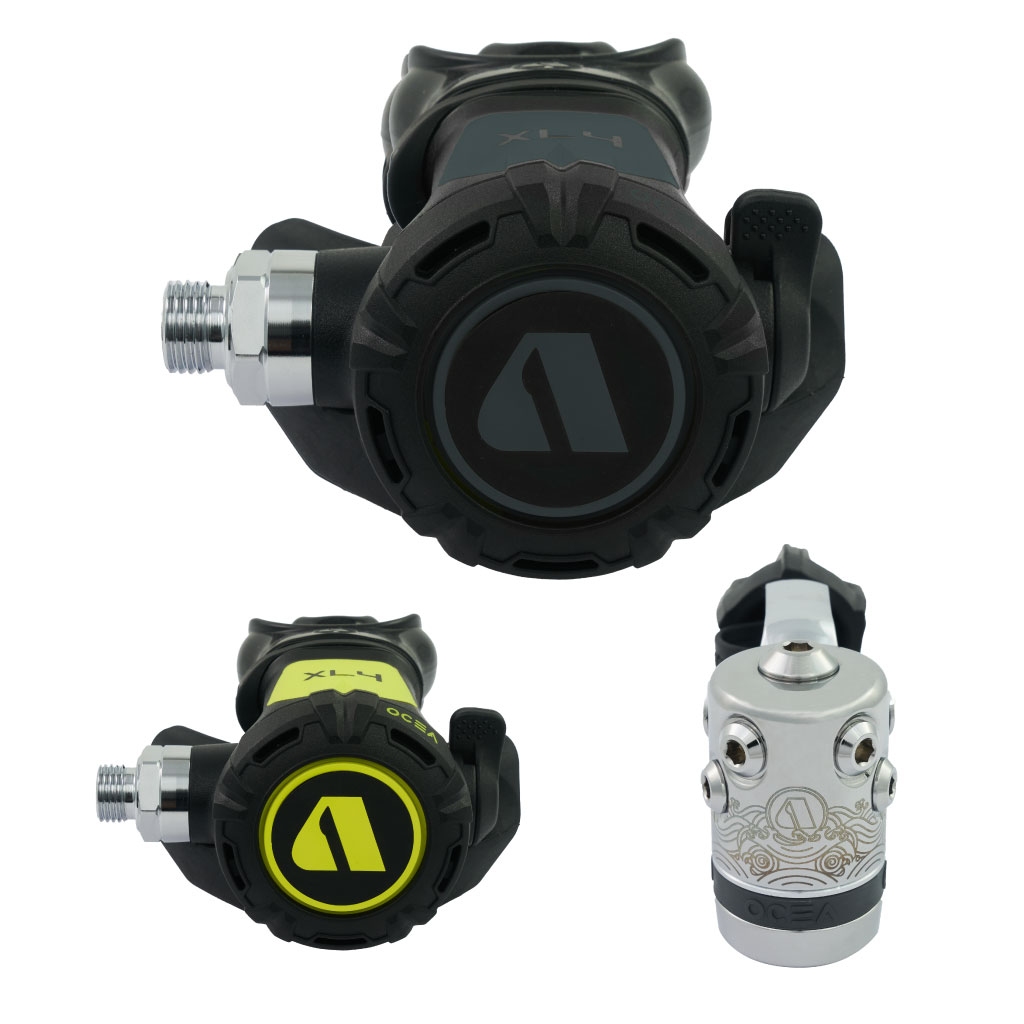

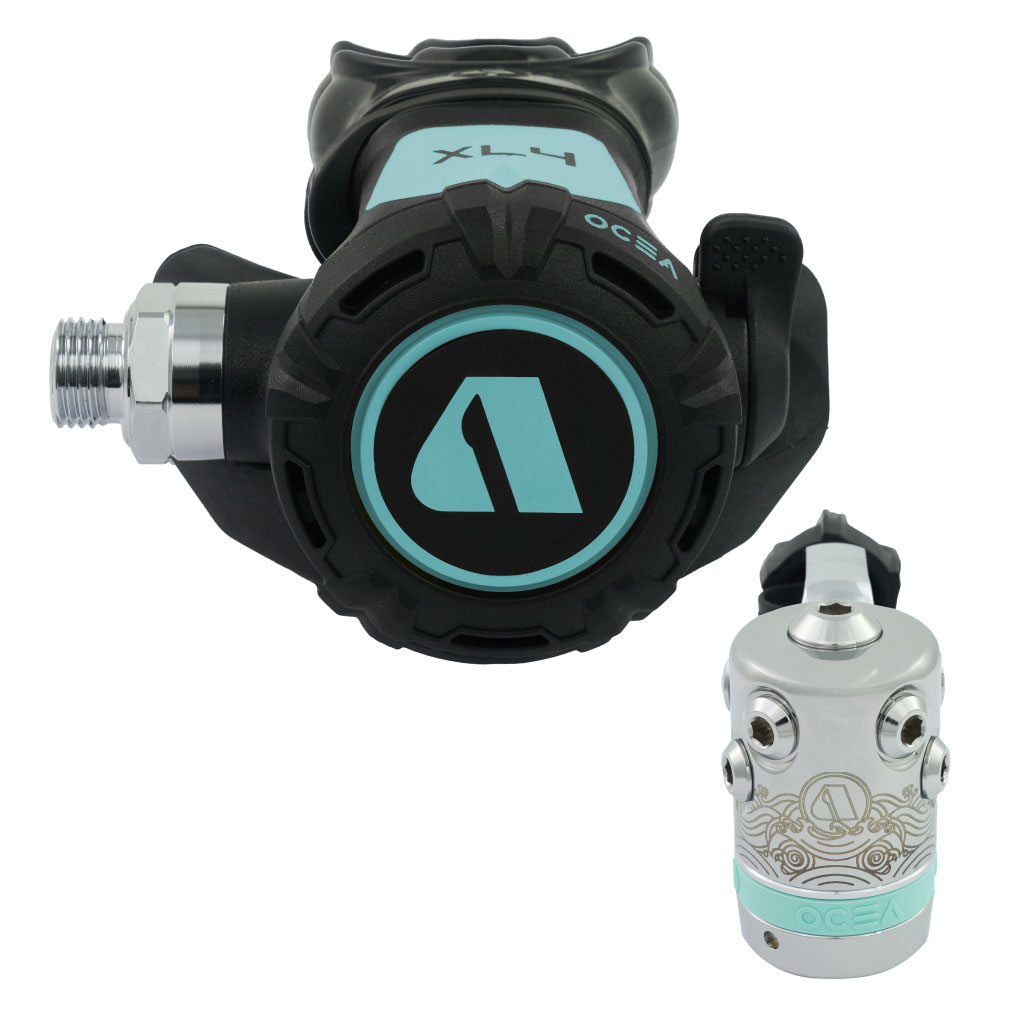

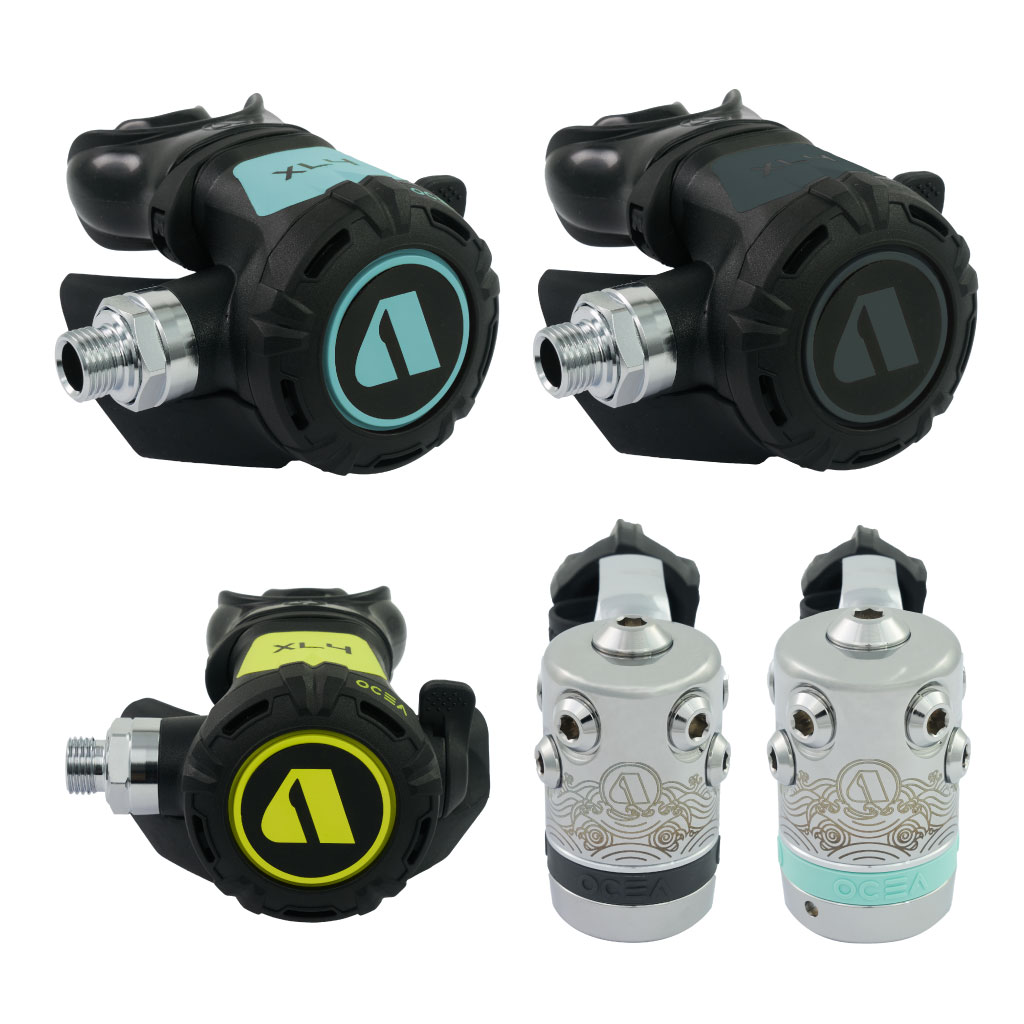

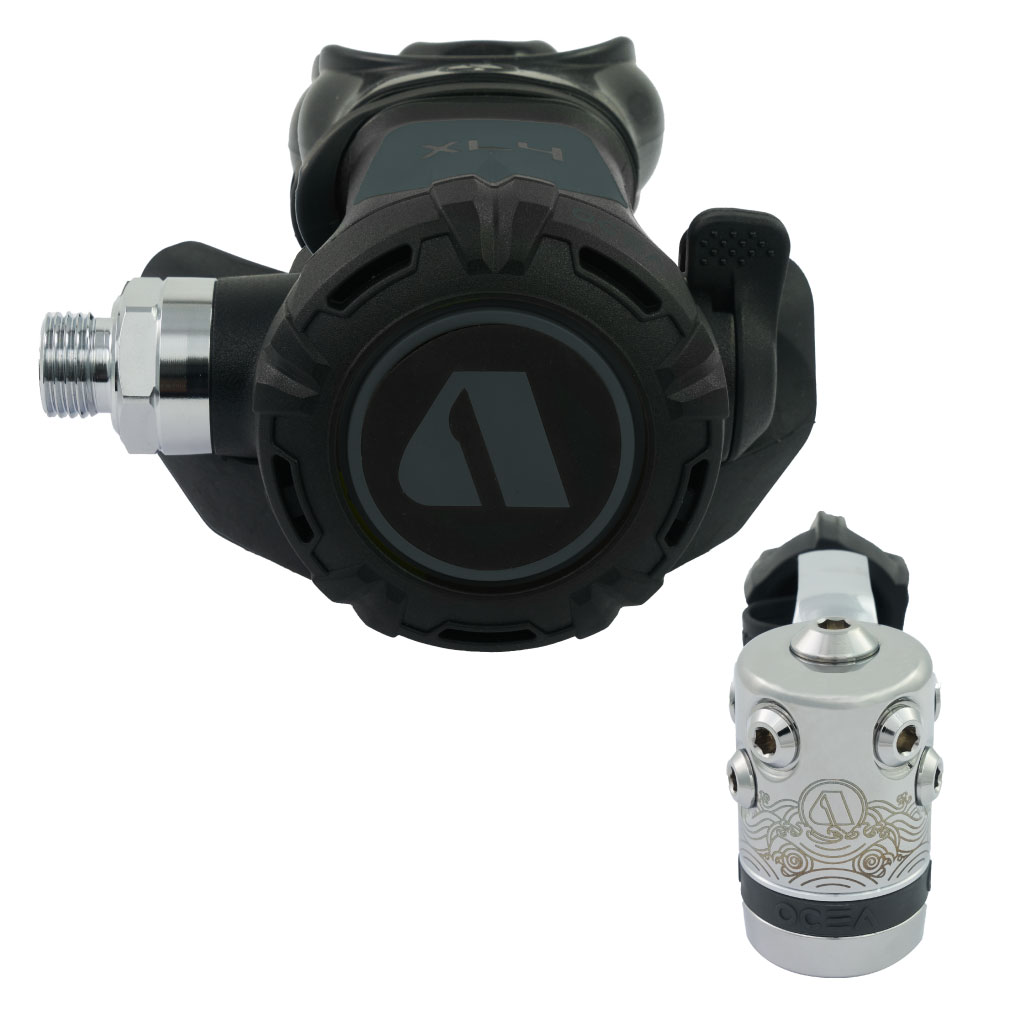

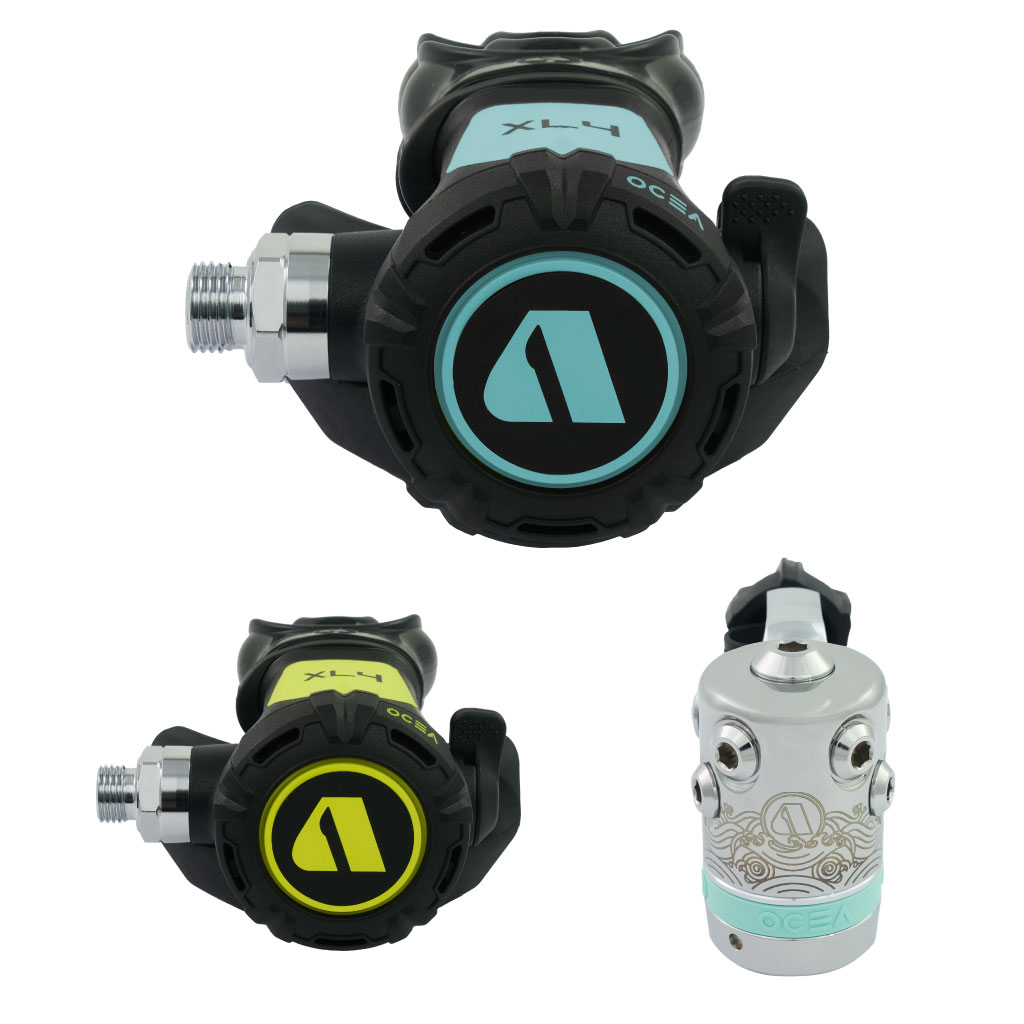

XL4 OCEA Regulator
The XL4 Ocea regulator is the first of its kind – an environmentally-conscious regulator made from recycled materials and bio-plastics, manufactured in a solar-powered facility. Based on the XL4+, every single material and process was reconsidered to create the most eco-sensitive scuba diving regulator in the world.
FIRST STAGE
- Compact machined first stage based on the expedition tested Apeks DS4 platform.
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.

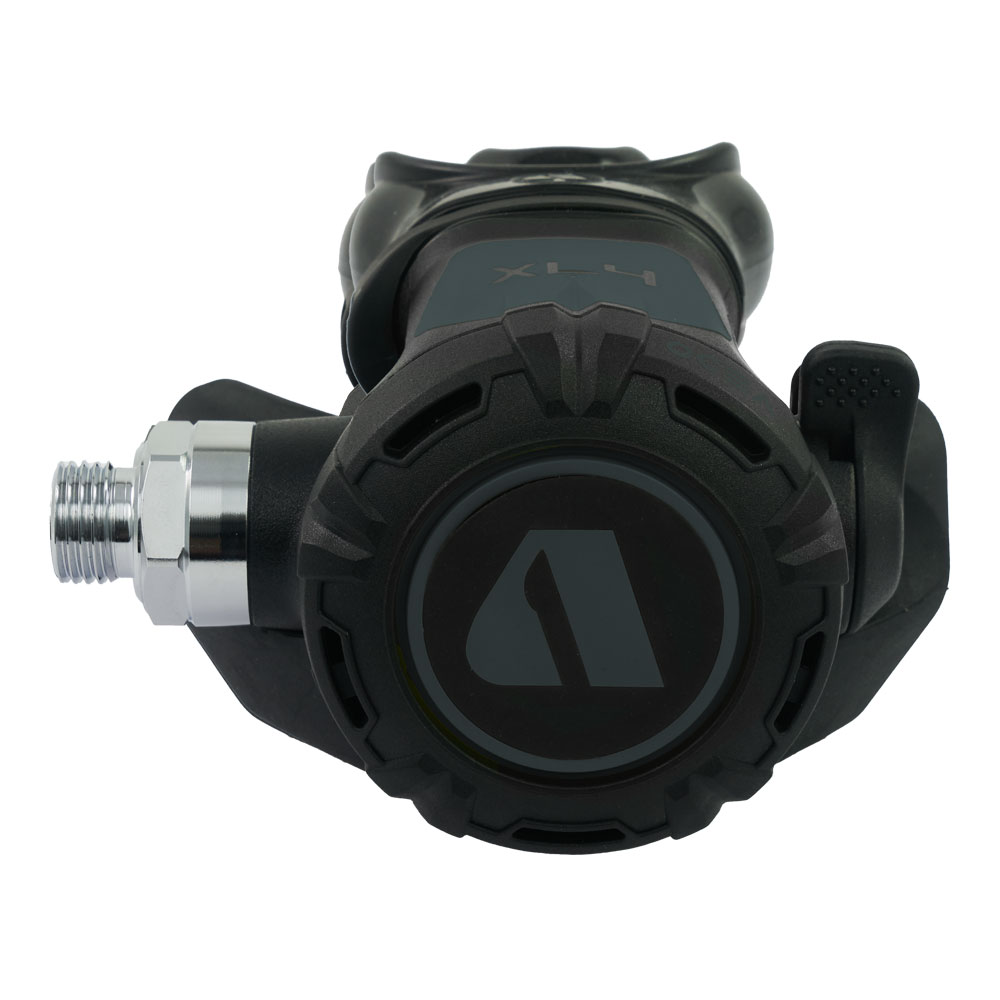

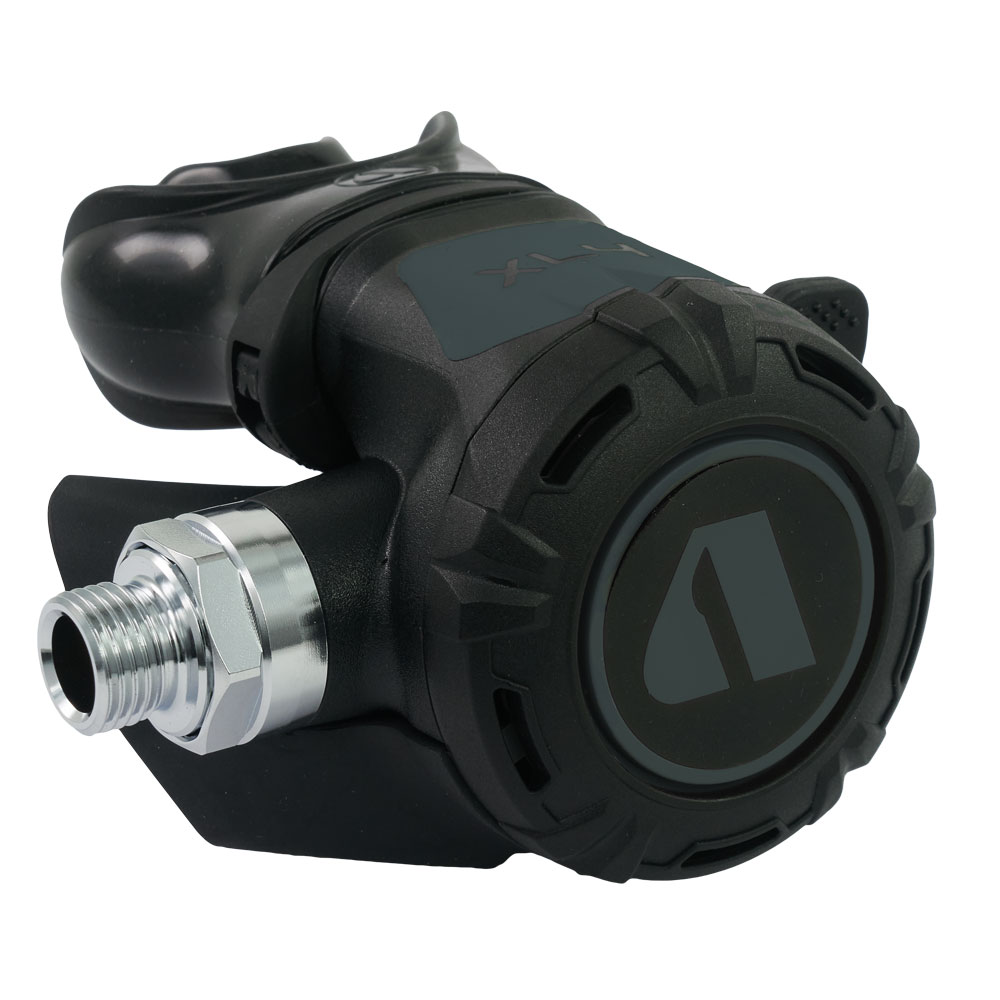

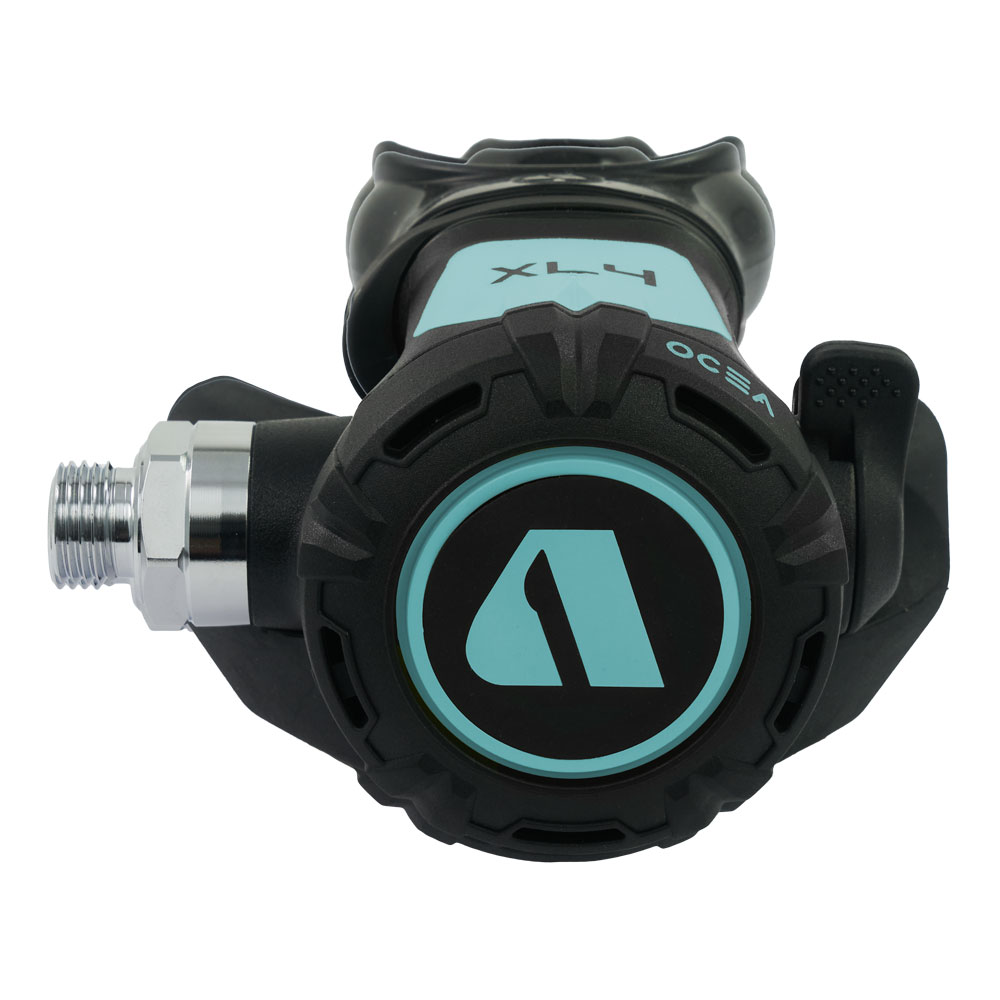

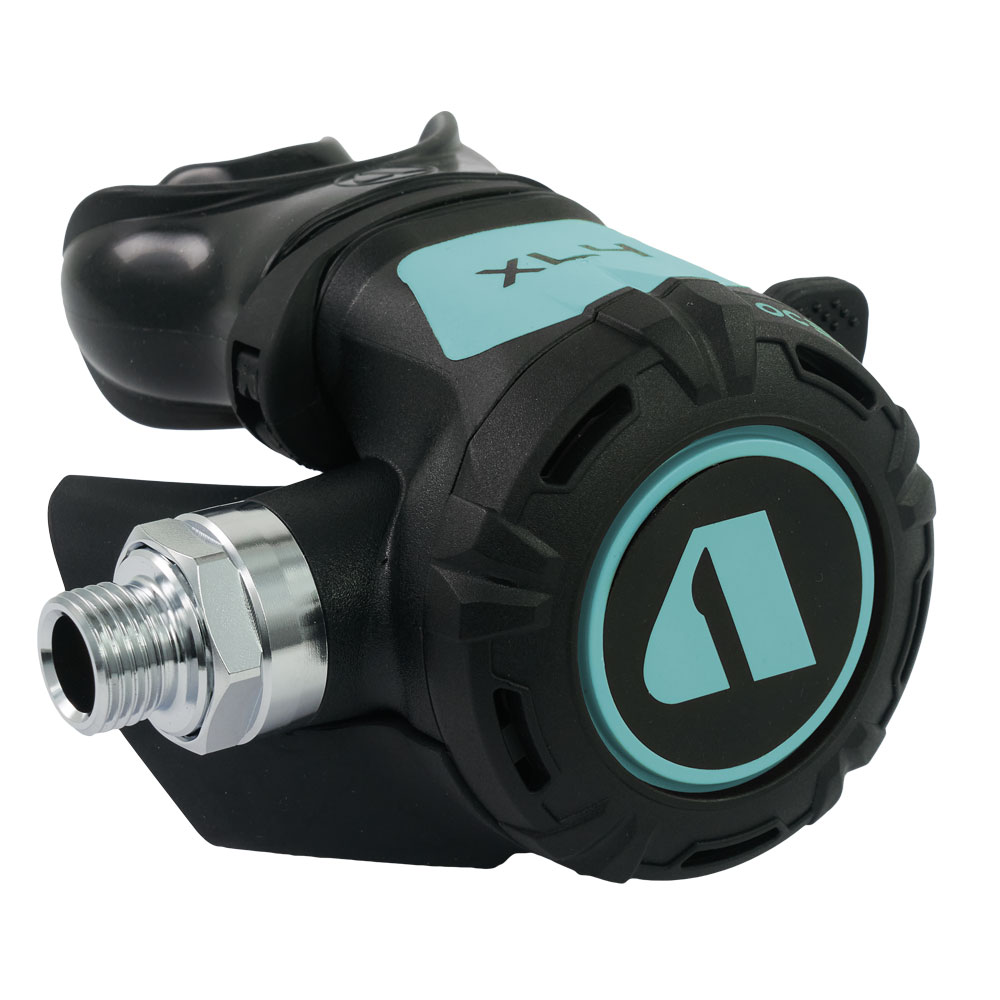

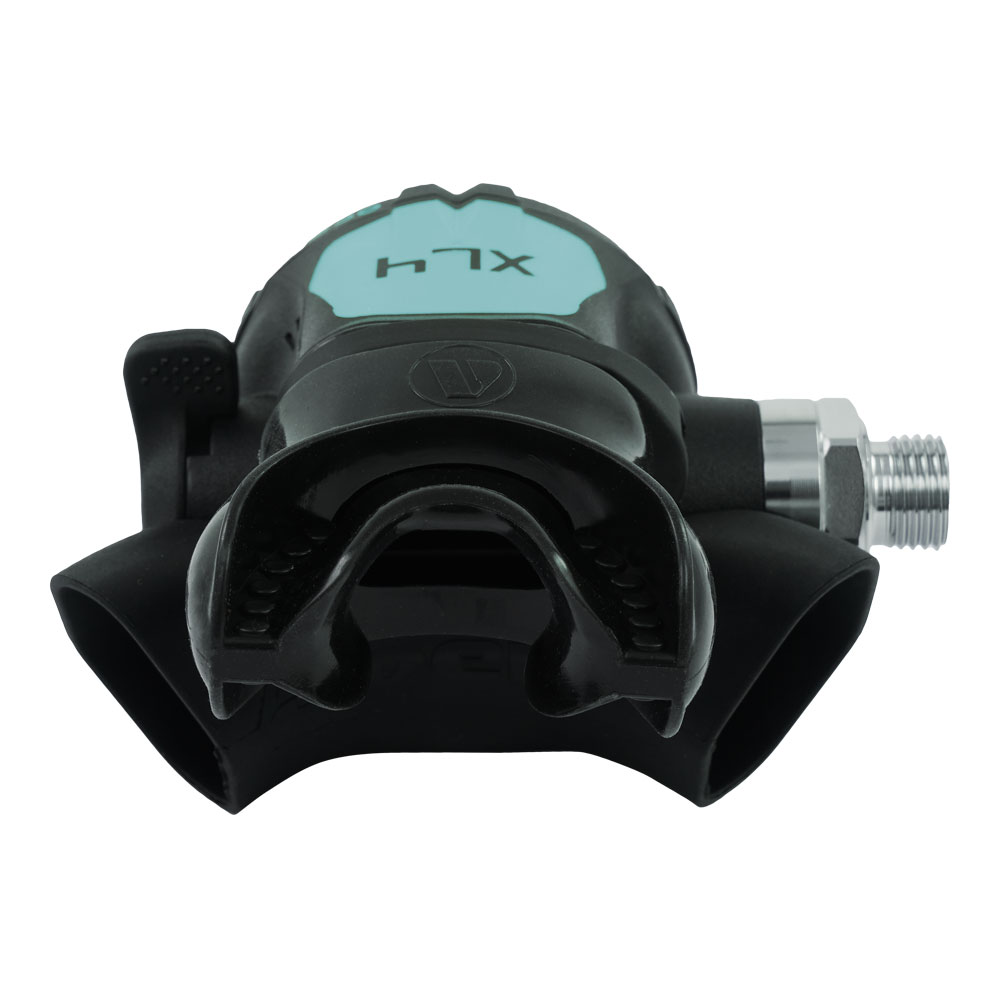

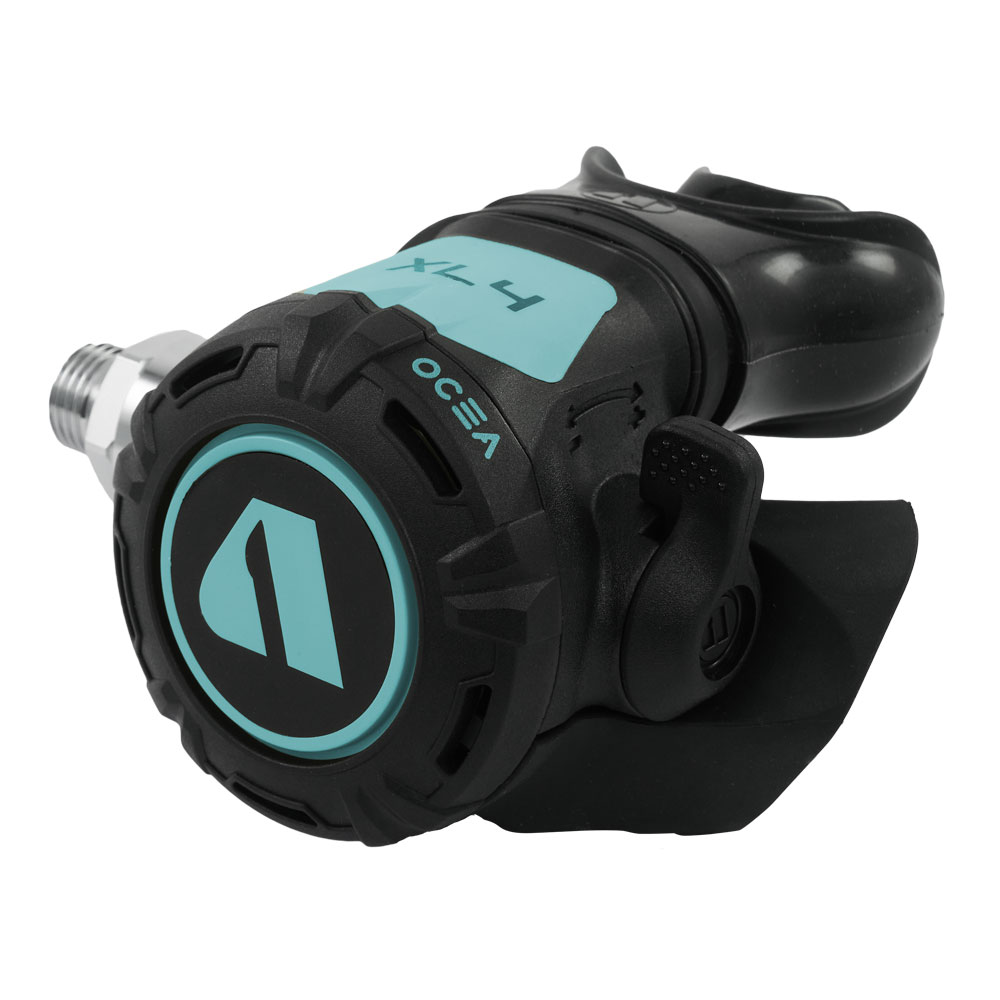

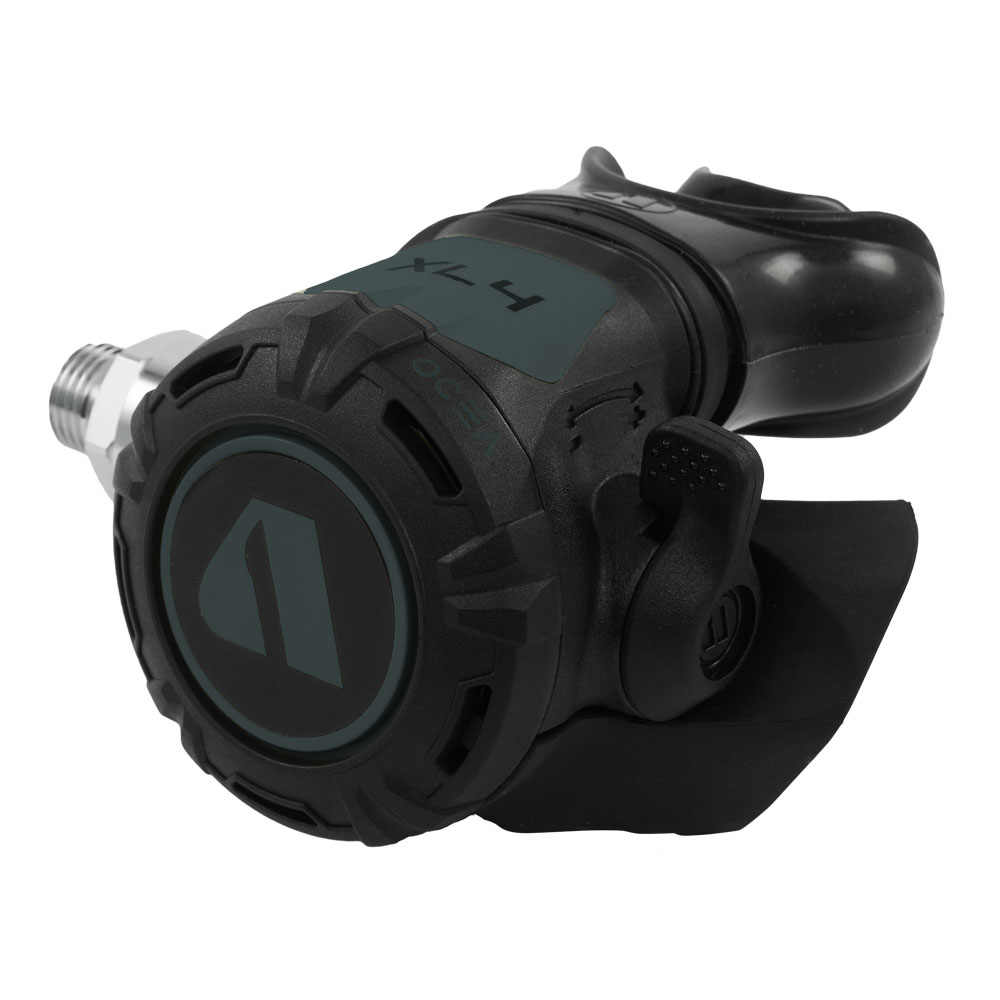

SECOND STAGE
- Compact and lightweight second stage improves comfort and helps reduce jaw fatigue on long duration dives
- High performance pneumatically balanced lever operated poppet valve
- Large, over moulded self-flushing and controllable purge button
- Ergonomic Venturi lever is easy to use and locate
- Flexible nylon braided hose has better cold water performance than a traditional rubber hose
- Standard metallic hose connection for interchangeability

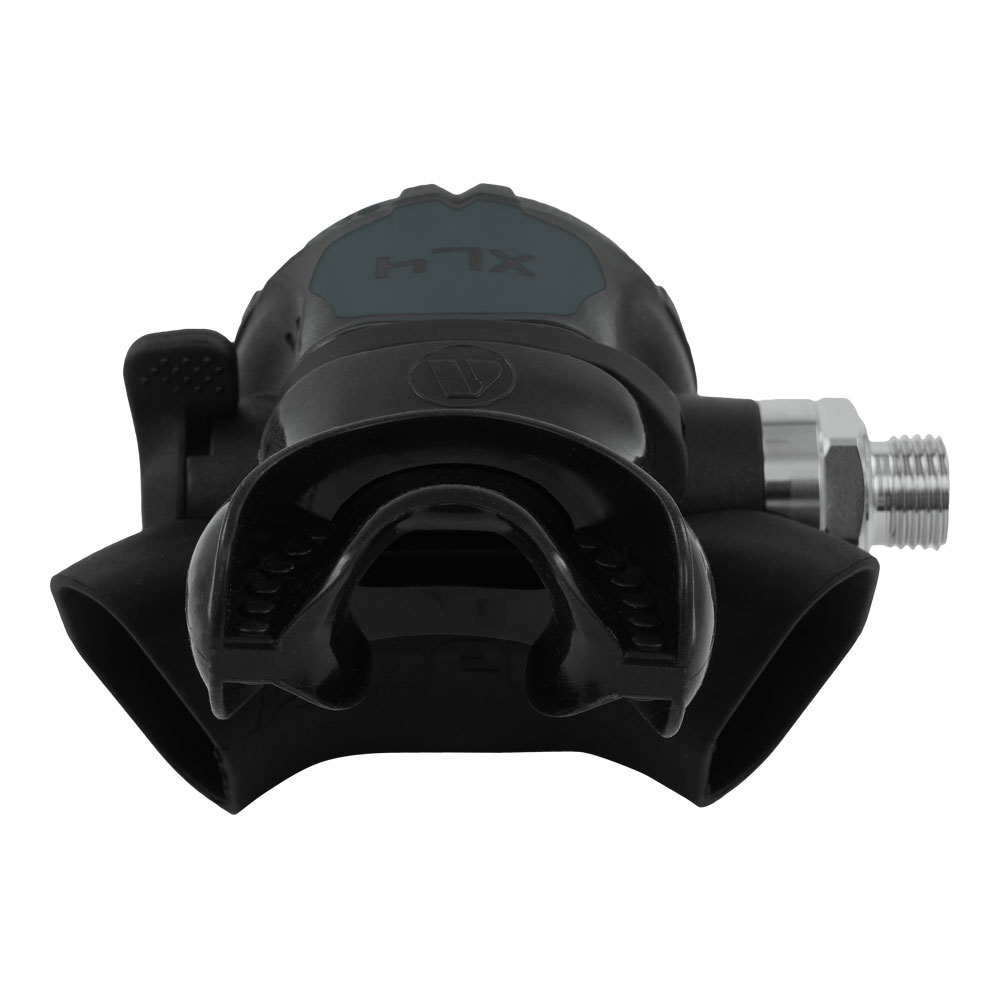

- Comfo-bite mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place
- Re-useable mouthpiece clip makes it simple to change mouthpieces in the field
- Durable and flexible rubber exhaust tee provides excellent bubble diversion
TECHNICAL SPECS

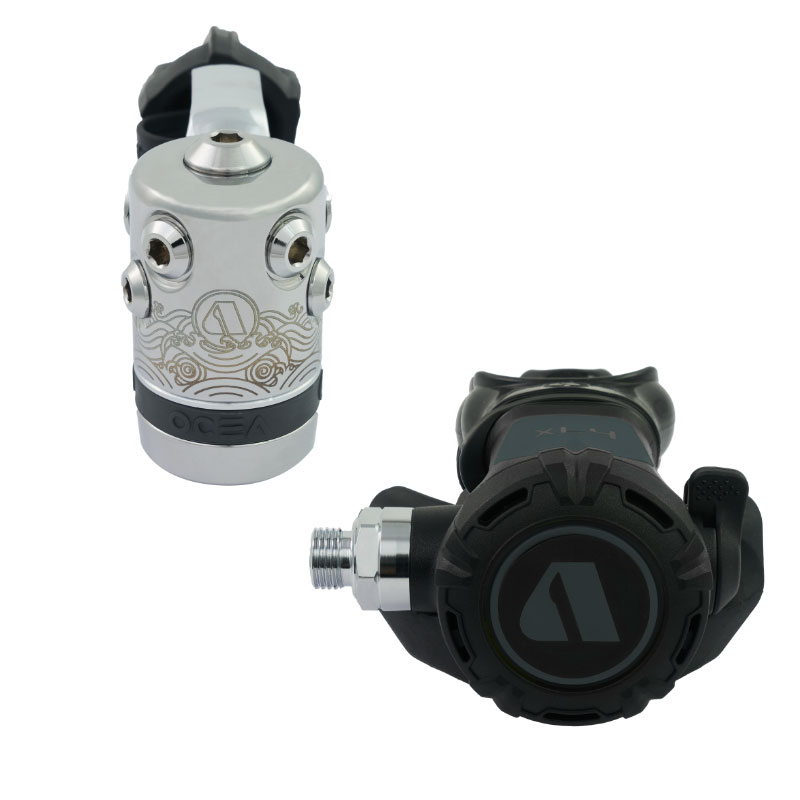

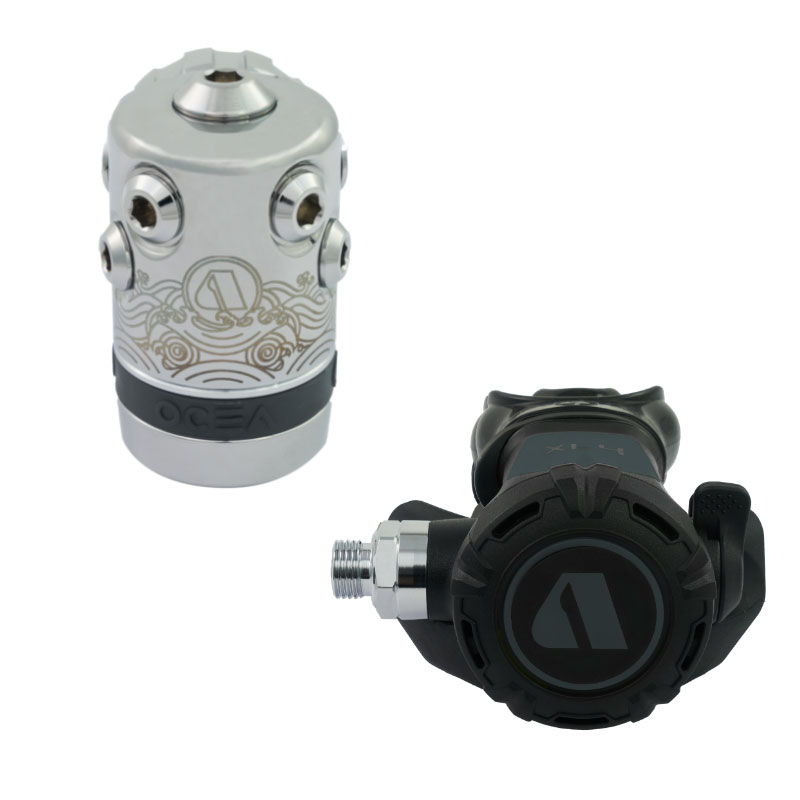

Connections | Yoke and DIN available |
Type of first stage | Over-balanced diaphragm design, environmentally sealed |
Body Type | One piece machined body |
Number of HP ports | 2 (7/16″ UNF) |
Number of MP ports | 4 (3/8″ UNF) |
Weight | DIN – 905g (2 lb) Yoke – 1041g (2.3 lb) |
Environmental Dry Kit | Standard |
First stage exterior | Satin |
Cold water use | Yes |
Type of second stage | Pneumatically balanced |
Opening Effort Control Knob | No |
Integrated Venturi Lever | Yes |
Mouthpiece | Comfo-bite™ |
Exhaust tee | Standard, one set |
Heat Exchanger for freezing resistance | Yes |
Hose type | Braided Flexi-hose |
Overall work of breathing (WOB) scores | Avg. 0.90 joules/liter |
