Tecline R2/TEC1

Description

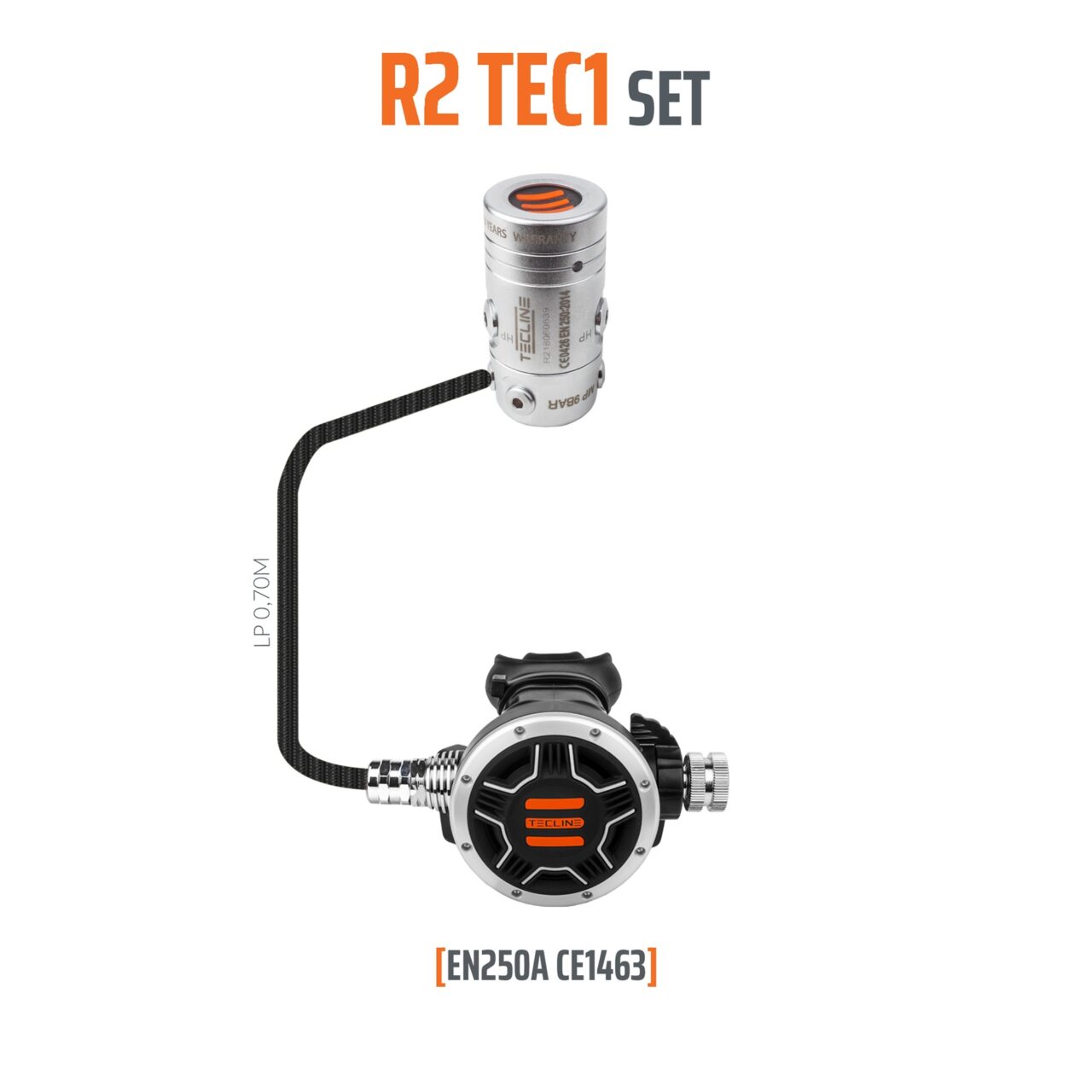

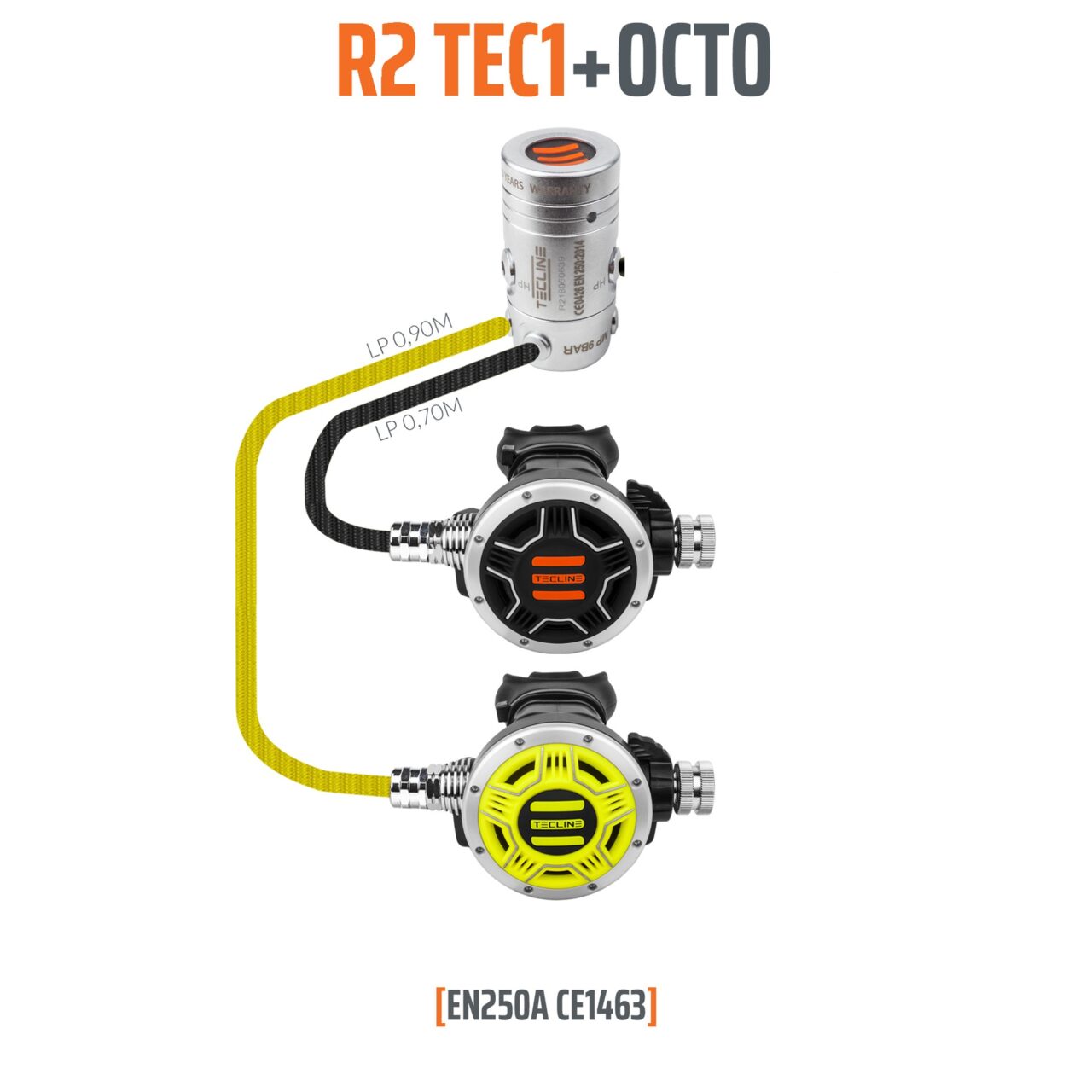

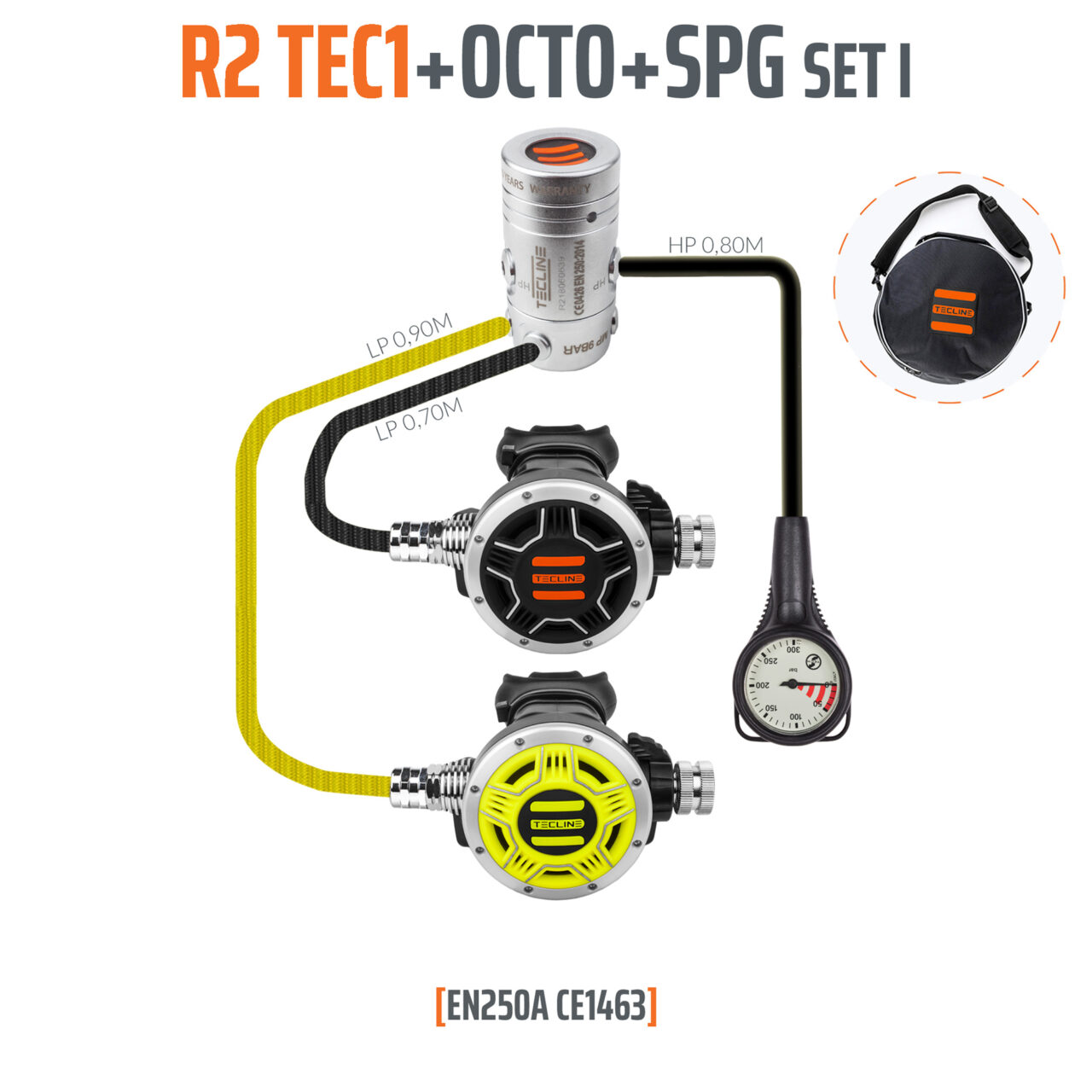

Tecline R2/TEC1 Regulator

Four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.
An optional 5th port is available for side mount or twin-cylinder set ups.

Can be converted from a right-handed hose configuration to a left-handed one. The process of changing the regulator to a left-handed configuration is both quick and simple. However this procedure must ONLY be performed by an TECLINE Authorized Service Technician.

Available in DIN configuration.

Braided flexi-hoses are now standard on all models. These hoses are lighter-weight, more flexible, and more durable.

First Stage:

• Turret style first stage
• Unique over-balanced, diaphragm design – as the diver descends, the over-balancing feature allows the medium-pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
• 2 HP ports and 4 MP ports on a rotating turret are angled for optimum hose routing
• An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.

Second Stage

• The pneumatically balanced second stage results in smooth, easy breathing.
• The large venturi lever has a soft-touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.
• Easy-to-grip opening effort control knob keeps the diver in control.
• A silicone exhaust valve improves the breathing performance of the regulator.
• The Comfort mouthpiece virtually eliminates jaw fatigue.
• A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
